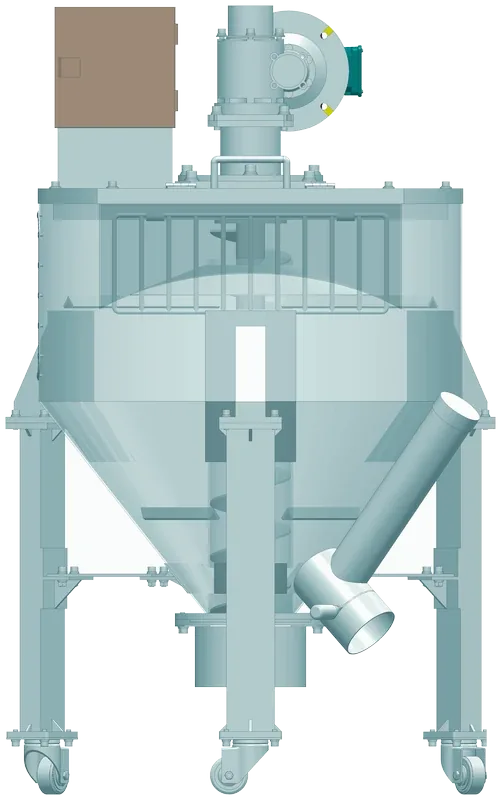

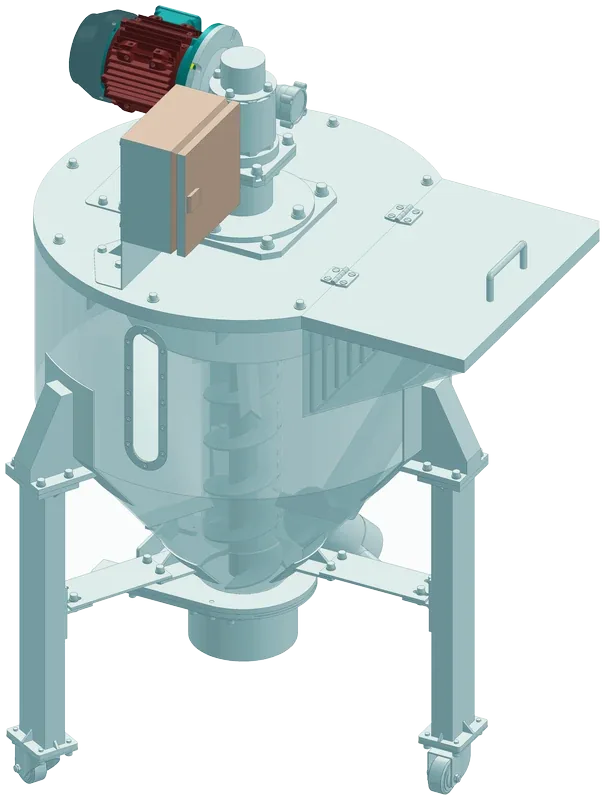

Mix-O-Well® 200 L mobile vertical screw mixer
200 litres, 150 effective. Hopper, barrel and screw in SS-304, driven by a 0.75 kW motor. On castors, and the motor and screw lift off for cleaning.
Key features
Goes to the job
On castors, so it goes to whichever machine is running the job, and takes the place of that machine's reservoir.
Detachable motor and screw
The motor and screw come off, so the barrel and hopper can be cleaned properly at a colour change.
Direct-coupled reducer
ALM-63 reducer at ratio 7, coupled directly, with no belts to tension.
Interlocked cleaning window
The motor will not start while the window is open.
How the screw mixes, why a uniform blend matters and how the interlock works are explained once for the whole range: Mix-O-Well® range.
Easy cleaning
The motor and the screw are detachable. The barrel and hopper can then be reached properly, so the mixer can be cleaned properly at every colour change.
Hopper, barrel and screw are SS-304 with a 4 mm screw flight. Everything outside the material path is mild steel.
Mobile inline mixing
It runs online with an extruder or moulding machine through the outlet port and takes the place of the reservoir. It is on castors, so it goes to whichever machine is running the job.
It also accepts material while it is mixing, so filling and blending are not two jobs done one after the other.
Technical specifications
| Model | Vertical mixer, non-insulated |
| Capacity | 200 L — 150 L effective |
| Wetted parts, hopper | SS-304 |
| Wetted parts, barrel and screw | SS-304 |
| Screw flight thickness | 4 mm |
| All other components | Mild steel |
| Motor | 3-phase, 0.75 kW, 80B5 |
| Reducer | ALM-63, ratio 7, direct coupled |
| Power supply | 3-phase, 50 Hz, 400 V |
| Screw rotation | Clockwise, viewed from the top |
| Mixing time | 10–15 minutes |
| Discharge port | 100 mm diameter, 550 mm high |
| Safety interlock | Proximity switch on the cleaning window — the motor will not start while it is open |
| Panel parts | Omron, Rittal, Schneider, Selec, Siemens |
| Mounting | Mobile, on castors |
| Motor and screw | Detachable for cleaning |
Not recommended for powders, flammable, explosive, liquid or semi-liquid materials. All specifications are subject to change without notice to improve reliability, function or design.
Other sizes
300 L · 800 L · 1200 L · 2000 L · Compare all five
Mix-O-Well is a registered trade mark of A.B. Plastech — 4367092, Class 7.
Request a quote for the Mix-O-Well® 200 L
Tell us what the material is, how much of it has to move per hour and what machine it feeds, and we will tell you which mixer fits — including when the answer is a different model from this one.
