Crystallisers, mixers
and material loaders
Cryst-O-Dry® crystallises and dries PET. Mix-O-Well® blends raw material without spillage. The Load-Well™ range moves granules and powder by vacuum or by compressed air.
Load-Well™ — moving granules and powder
Three ways to move material into a process, chosen by what the material is and how it has to arrive: a separate vacuum loader for granules, a filtered loader for powder, and a compressed-air venturi loader where a blower is not warranted.
Load-Well™ SVL
Powder-coated CRC MS receiver, 6 L, ports orientable through 360°, inductive proximity demand switch. 300–400 kg/hr. For plastic granules.
See the machine →
Load-Well™ PVL
SS-304, 14 L in a 300 mm body, 51 mm ports. A 500 mm pleated cartridge cleaned by reverse pulse from an accumulator on the machine, so suction does not decay through the shift.
See the machine →

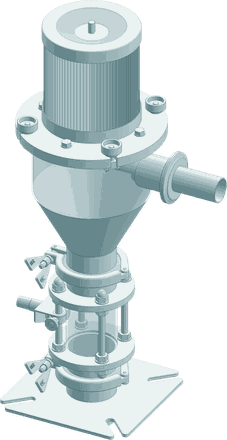

Load-Well™ AVL
SS-304, 4.4 L receiver, capacitive sensing through the sight glass. Conveys continuously until the material reaches the sensor — no blower, no flap, no timer to set.
See the machine →
Load-Well™ SVL SS-304
SS-304 throughout, 12 L effective, OD 50 mm ports. Level sensed through a polycarbonate sight tube, so nothing sits inside the product path.
See the machine →Load-Well™ range at a glance
| Model | Type | Capacity | Key features |
|---|---|---|---|
| SVL | Separate vacuum loader | 6 L receiver | Powder-coated CRC MS, 360° orientation, inductive proximity switch |
| SVL SS-304 | Food-grade stainless vacuum loader | 12 L effective | SS-304 with 316 clamps, OD 50 mm ports, polycarbonate sight tube, cross-beam photo-sensor mounted outside it, 1.5 kW |
| PVL | Powder vacuum loader | 14 L receiver | SS-304, 300 mm body, 51 mm ports, 500 mm pleated cartridge (1.728 m²), reverse-pulse cleaning from an on-board accumulator, rotary paddle level switch |
| AVL | Air venturi loader | 4.4 L receiver | SS-304, capacitive sensing through the sight glass, two tri-clover clamps, continuous conveying, no motor |
Not recommended for flammable, explosive, liquid or semi-liquid materials. PVL is additionally unsuitable for carbon black and titanium dioxide.
Mix-O-Well® range at a glance
| Model | Capacity | Motor | Key features |
|---|---|---|---|
| 200 L | 200 L — 150 L effective | 0.75 kW | SS-304 wetted parts, ALM 63 reducer direct coupled, mobile on castors, interlocked cleaning window |
| 300 L | 300 L | 0.75 kW | SS-304 wetted parts, ALM 63 reducer direct coupled, mobile on castors, interlocked cleaning window |
| 800 L | 800 L | 1.5 kW | SS-304 wetted parts, belt driven, interlocked cleaning window |
| 1200 L | 1200 L | 4 kW | SS-304 wetted parts, interlocked cleaning window |
| 2000 L | 2000 L — 1800 L effective | 5 kW | SS-304 wetted parts, ladder built into the frame, fixed legged frame, interlocked cleaning window |
All sizes 3-phase, 50 Hz. Not recommended for powders, flammable, explosive, liquid or semi-liquid materials.

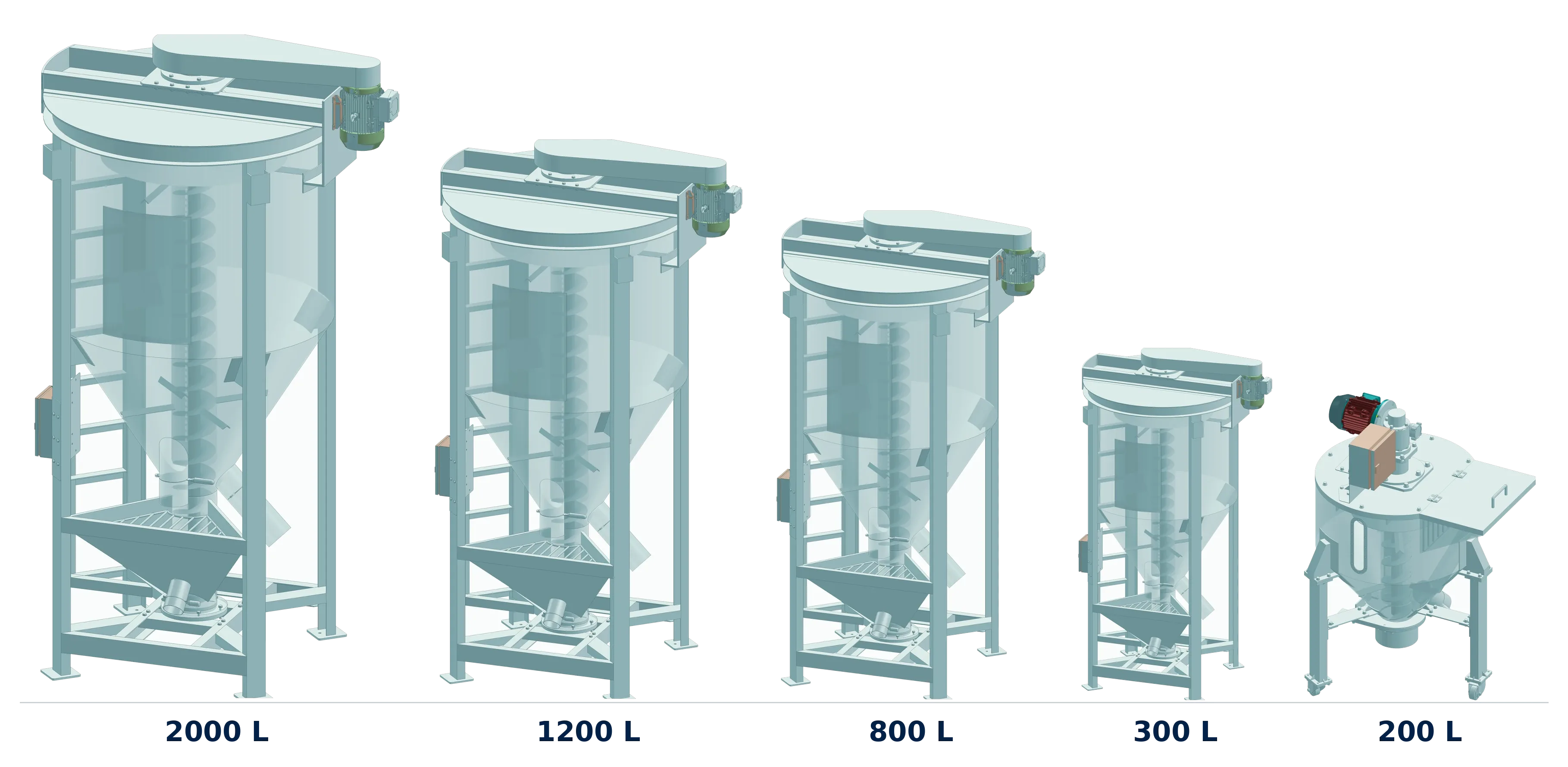

The five sizes, to scale
The 300, 800, 1200 and 2000 are one machine in four sizes. The 200 is a different arrangement — smaller, squatter and made to be wheeled to whichever machine is running the job.
Scaled by capacity, not measured. Overall dimensions are confirmed in our written offer.
Mix-O-Well® — blending without spillage
An online mixer that blends raw material homogeneously and removes most of the handling a manual mixing station needs — no floor space for drums, no re-packing between steps, one man instead of two.

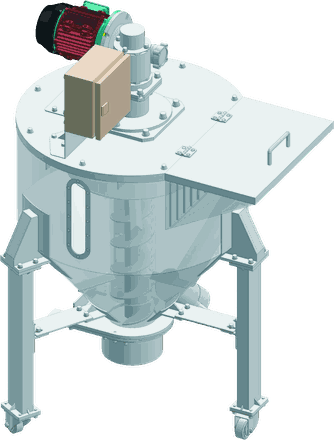

Mix-O-Well® 200 L
200 L, 150 L effective. SS-304 hopper, barrel and screw, 0.75 kW. On castors, and the motor and screw lift off for cleaning.
See the machine →

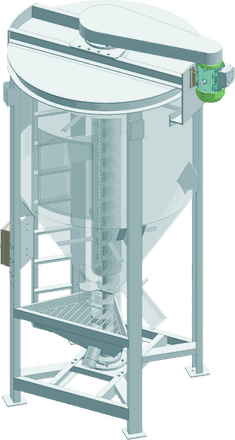

Mix-O-Well® 2000 L
2000 L, 1800 L effective. SS-304 hopper, barrel and screw, 5 kW. 1787 mm across, 3122 mm high, ladder built into the frame.
See the machine →Lower power consumption per kg of raw material than manual mixing. Not recommended for mixing powder, flammable, explosive, liquid or semi-liquid materials.

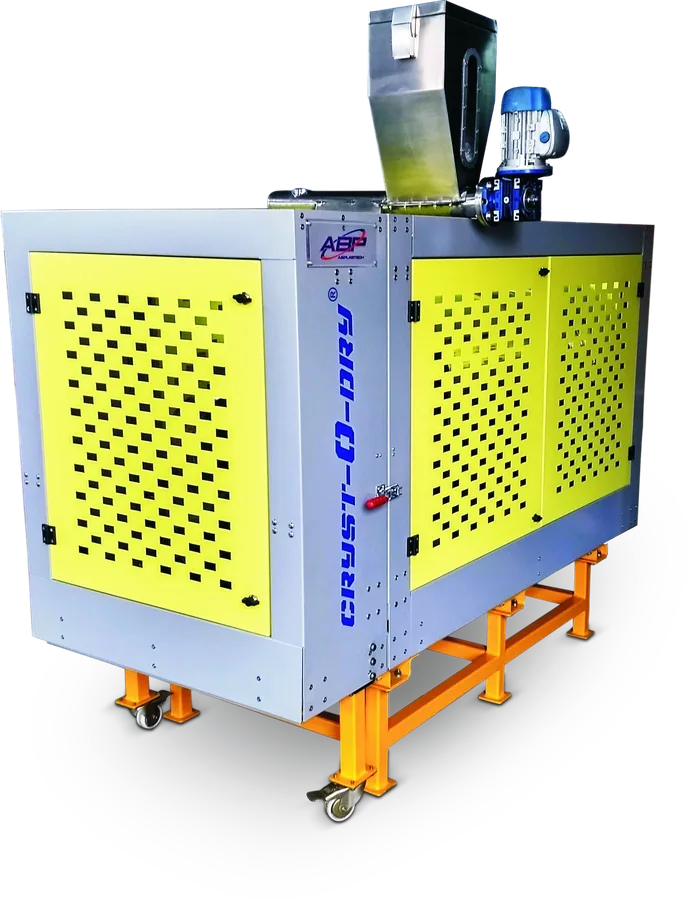

Cryst-O-Dry®
Indian Patent 297057. Proven. Installed and running.
India's first indigenously developed infrared rotary crystalliser and dryer — a single machine that crystallises and dries amorphous PET in one continuous pass, in a patented rotary drum. What a conventional two-machine process takes five to six hours to do, this does in fifteen to twenty-five minutes.
Read about Cryst-O-Dry® →
Tell us the material and the throughput
What the material is, how much of it per hour, and what it has to feed or be fed by. We will size and specify the machine to it.
